TPP 40-331M3 | TRACO POWER

Switching power supply, 15/5/-15 VDC, 6 A, 40 W, TPP 40-331M3

Order No.: 32C2693
EAN: 7613441041070
MPN:
TPP 40-331M3
Series: TPP 40
TPP 40-331M3 TRACO POWER Built-In Power Supplies

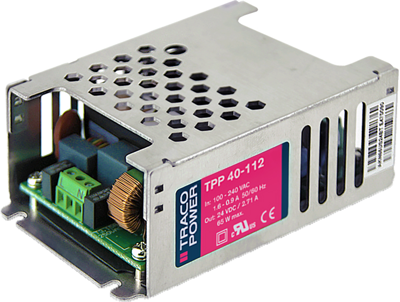

Image may differ
Unit Price (€ / pc.)
114.3233 € *
Available in 10 days: 4 pcs. - if ordered today
Total Price:
114.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
114.3233 €

AC/DC Power Supply, TPP 40-331M3, TRACO POWER

The TPP 40-331M3 is a 40 W AC/DC power supply that features a reinforced double I/O isolation system according to latest medical safety standards. The excellent efficiency allows a high power density. The full load operating temperature range is -40°C to +70°C while it goes up to 85°C with 50% load derating.

Features

  • Protection class I and II prepared
  • Low leakage current
  • Operating up to 5000 m altitude

Applications

  • Medical devices
Technical specifications
Filter Property Value
Input voltage AC 85-264 VAC/120-370 VDC
Width 60.5 mm
Output voltage DC 15/5/-15 VDC
Depth 34.5 mm
Power 40 W
Number of outputs 3
efficiency 88 %
Output current 6 A
Length 102.4 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
