TPP 180-153-M | TRACO POWER

Switching power supply, 53 VDC, 3.4 A, 180 W, TPP 180-153-M

Order No.: 35C1744
EAN: 7613441067889
MPN:
TPP 180-153-M
Series: TPP 180-M

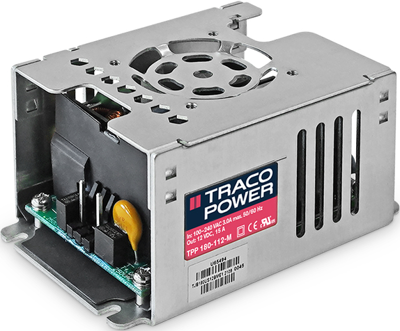

TPP 180-153-M TRACO POWER Built-In Power Supplies
Image may differ
Unit Price (€ / pc.)
131.6259 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
131.63 € *
Price list
Quantity
Price per unit*
1 pcs.
131.6259 €
5 pcs.
118.4645 €
*incl. VAT plus shipping costs
Subject to prior sale

AC/DC Medical power supply, TPP 180-153-M, TRACO POWER

The TPP 180-M is a encased AC/DC power supply coming in an encased package. It features a reinforced double I/O isolation (4000 VAC) system according to latest medical safety standards (60601-1 edition 3.2, 2 x MOPP). The leakage current is below 100 μA and makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 94% allows a high power-density and compact design (3.6” x 2.44”). The operating temperature range is -40°C to +85°C with derating above 50°C. In natural convection operation This power supply deliver 150 Watt going up to 180 Watt with forced air cooling. Additionally, It can deliver 220 Watt peak power for 5s. The EMC characteristic is dedicated for applications in industrial and medical fields. High reliability is providesd by using high quality components and an excellent thermal management making the TPP 180-M an ideal solution for industrial and medical devices and for demanding safety and space critical applications.

Features

  • High power-density
  • Peak power operation up to 220 Watt for 5s
  • Active power factor correction >0.9
Technical specifications
Depth 34.6 mm
Output voltage DC 53 VDC
Output current 3.4 A
Width 50.8 mm
Power 180 W
Length 76.2 mm
Number of outputs 1
efficiency 93 %
Input voltage AC 85-264 VAC/120-370 VDC
Logistics
Country of origin TW
Customs tariff number 85044083
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
