TOP 200-148 | TRACO POWER

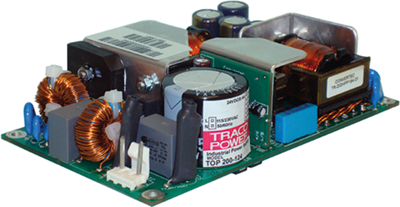

Open frame switching power supply, 48 VDC, 4.2 A, 200 W, TOP 200-148
Unit Price (€ / pc.)
120.9873 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
120.99 € *
Price list
Quantity
Price per unit*
1 pcs.
120.9873 €
10 pcs.
108.8850 €
*incl. VAT plus shipping costs
Subject to prior sale
Open-frame switching mode power supplies, type Traco Top 200.
Switching mode power supply with 200 W output power, convection cooling and overvoltage protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 48 VDC | |
| Power | 200 W | |

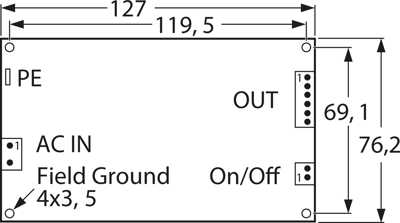

| Depth | 34 mm | |
| efficiency | 95 % | |
| Length | 127 mm | |
| Input voltage AC | 85-264 VAC | |
| Width | 76.2 mm | |
| Number of outputs | 1 | |
| Output current | 4.2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
