TOP 100-148 | TRACO POWER

Open frame switching power supply, 48 VDC, 2.1 A, 100 W, TOP 100-148

Order No.: 25K4080
EAN: 7613441038803
MPN:
TOP 100-148
Series: TOP 100

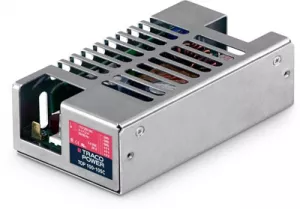

TOP 100-148 TRACO POWER Built-In Power Supplies Image 1
TOP 100-148 TRACO POWER Built-In Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
80.3131 € *
Available in 7 Days: 134 pcs. - if ordered today
Total Price:
80.31 € *
Price list
Quantity
Price per unit*
1 pcs.
80.3131 €
10 pcs.
72.2687 €
*incl. VAT plus shipping costs
Subject to prior sale

Open Frame switching mode power supplies, type Traco TOP 100.

100 W output power

Technical specifications
Filter Property Value
Power 100 W
Width 50.8 mm
Output voltage DC 48 VDC
Input voltage AC 90-132 VAC/187-264 VAC
Depth 31.8 mm
Output current 2.1 A
efficiency 91 %
Length 101.6 mm
Number of outputs 1
Logistics
Property Value
Country of origin TW
Customs tariff number 85044083
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
