TMW 24-105 | TRACO POWER
Switching power supply, 5.1 VDC, 4 A, 20.4 W, TMW 24-105
Unit Price (€ / pc.)
42.3045 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
42.30 € *
Price list
Quantity
Price per unit*
1 pcs.
42.3045 €
5 pcs.
38.0800 €
*incl. VAT plus shipping costs
Subject to prior sale

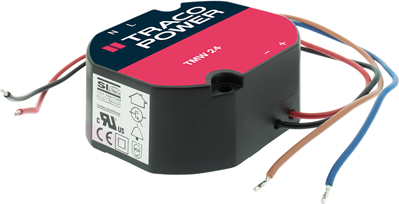

AC/DC Medical power supply, TMW 24-105, TRACO POWER
The TMW 24 is a fully encapsulated AC/DC power supply designed for medical, household, and industrial applications. All models comes in compact, dust resistant, and waterproof IP68 housings, are IEC/EN 62368-1, IEC/- EN 60335-1 and IEC/EN 60601-1 3rd edition compliant and are certified for 2xMOPP. Featuring a reinforced isolation, the TMW 24 power supply is prepared for protection class II applications. It`s wide operating temperature range from -20°C to +80°C makes them ideal candidates for demanding applications.
Features
- Fully encapsulated, dust resistant, and waterproof
- Mountable in wall outlet boxes, with flying leads
- Screw mountable on wood and inside furniture
- Short-circuit protection (SCP)
- Overvoltage protection (OVP)
- Overtemperature protection (OTP)
Technical specifications
| Depth | 24.5 mm | |
| Output voltage DC | 5.1 VDC | |
| Output current | 4 A | |
| Width | 51 mm | |
| Power | 20.4 W | |
| Length | 53 mm | |
| Number of outputs | 1 | |
| efficiency | 85 % | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
