TMP 30215C | TRACO POWER

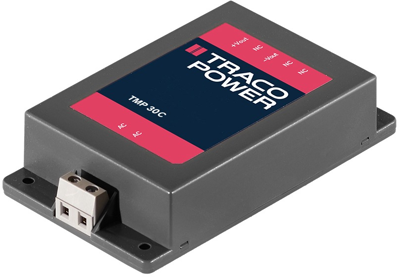

Power supply module, ±15 VDC, 1 A, 30 W, TMP 30215C
Unit Price (€ / pc.)
78.4448 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
78.44 € *
Price list
Quantity
Price per unit*
1 pcs.
78.4448 €
10 pcs.
70.6027 €
*incl. VAT plus shipping costs
Subject to prior sale
Power modules, type Traco TMP.
Flat, molded switching mode power supply module with short-circuit and overload protection
For chassis mounting, type TMP 30.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 25.6 mm | |
| Output voltage DC | ±15 VDC | |
| Output current | 1 A | |
| Width | 63.8 mm | |
| Power | 30 W | |
| Length | 112 mm | |
| Number of outputs | 2 | |
| efficiency | 80 % | |
| Input voltage AC | 85-264 VAC/120-370 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
