TIW 12-124 | TRACO POWER

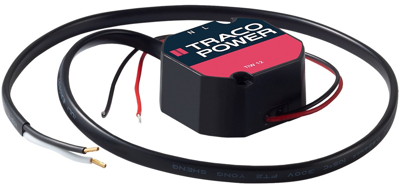

Switching power supply, 24 VDC, 500 mA, 12 W, TIW 12-124
Unit Price (€ / pc.)
43.7206 € *
Available: 10 pcs.
Available in 7 Days: 108 pcs. - if ordered today
Total Price:
43.72 € *
Price list
Quantity
Price per unit*
1 pcs.
43.7206 €
10 pcs.
39.3533 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies for domestic installations, type Traco TIW.
For installation in flush-mount boxes with encapsulated plastic housing, short-circuit/overload/thermal overload protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 500 mA | |
| Degree of protection (IP) | IP67 | |
| Depth | 48 mm | |
| Input voltage AC | 93-264 VAC/130-375 VDC | |
| Power | 12 W | |
| Output voltage DC | 24 VDC | |
| Length | 50.2 mm | |
| efficiency | 81 % | |
| Width | 23.6 mm | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
