TIW 06-103 | TRACO POWER
Switching power supply, 3.3 VDC, 1.2 A, 4 W, TIW 06-103
Unit Price (€ / pc.)
39.3771 € *
Available in 10 days: 119 pcs. - if ordered today
Total Price:
39.38 € *
Price list
Quantity
Price per unit*
1 pcs.
39.3771 €
10 pcs.
35.4382 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies for domestic installations, type Traco TIW.
For installation in flush-mount boxes with encapsulated plastic housing, short-circuit/overload/thermal overload protection; Input voltage: 93 to 264 VAC, 47 to 63 Hz. Current limiting: max. 2.5 A/3.5 A (models up to 6.0 V/as of 12 V). Degree of protection: IP 67. Operating temperatures: –25 to +50 °C.
Technical attributes (type, output voltage, output current, efficiency): TIW 06-103, 3.3 VDC, 1.2 A, 75 %

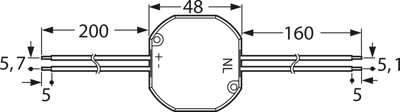

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 1.2 A | |
| Width | 48 mm | |
| efficiency | 73 % | |
| Number of outputs | 1 | |
| Input voltage AC | 90-264 VAC/130-375 VDC | |
| Power | 4 W | |
| Output voltage DC | 3.3 VDC | |
| Length | 50.2 mm | |
| Depth | 23.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
