D12 T12 HWS | TRACO POWER

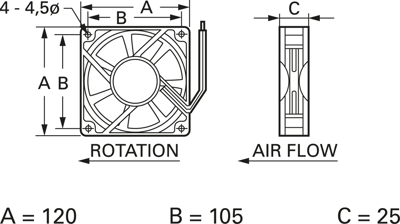

DC axial fan, 12 V, 120 x 120 x 25 mm, 142 m³/h, 44 dB, slide bearing, TRACO POWER D12 T12 HWS
Order No.: 82B4540
EAN: 4099889479348
MPN:
D12 T12 HWS
Unit Price (€ / pc.)
44.4941 € *
Standard delivery time from the manufacturer is: 12 Weeks
DC Axial fan, D12 T12 HWS, TRACO
The D12 T12 HWS axial DC fan is a type of fan that blow air along the axis of the fan that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connector 300 mm, stranded wire stripped, tinned
- Housing and blades in thermoplastic - UL 94V-0
- Protected against blocking
- Reverse polarity protected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 25 mm | |
| Version | DC axial fan | |
| Height | 120 mm | |
| Volume flow | 142 m³/h | |
| Type of bearing | slide bearing | |
| Sound pressure level | 44 db | |
| Rated voltage | 12 V | |
| speed | 3000 1/min | |
| Width | 120 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
