D04 T12 MWS | TRACO POWER
DC axial fan, 12 V, 40 x 40 x 20 mm, 10.8 m³/h, 25.5 dB, slide bearing, TRACO POWER D04 T12 MWS
Order No.: 82B4502
EAN: 4099889479263
MPN:
D04 T12 MWS
Unit Price (€ / pc.)
12.019 € *
Standard delivery time from the manufacturer is: 12 Weeks
DC Axial fan, D04 T12 MWS, TRACO
The D04 T12 MWS Axial DC fan is a type of fan that blow air along the axis of the fan that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connector 300 mm, stranded wire stripped, tinned
- Housing and blades in thermoplastic - UL 94V-0
- Protected against blocking
- Reverse polarity protected

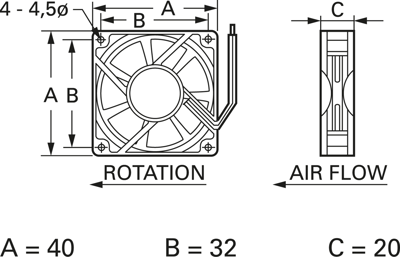

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Depth | 20 mm | |
| Rated voltage | 12 V | |
| Volume flow | 10.8 m³/h | |
| Sound pressure level | 25.5 db | |
| Type of bearing | slide bearing | |
| speed | 6000 1/min | |
| Height | 40 mm | |
| Width | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
