TSP-REM360 | TRACO POWER
Redundancy module, 24 VDC, 15 A, for TSP 90-124/N, TSP 180-124, TSP 360-124, TSP-REM360
Order No.: 35C2051
EAN: 7613441051710
MPN:
TSP-REM360
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
148.75 € *
Standard delivery time from the manufacturer is: 10 Weeks

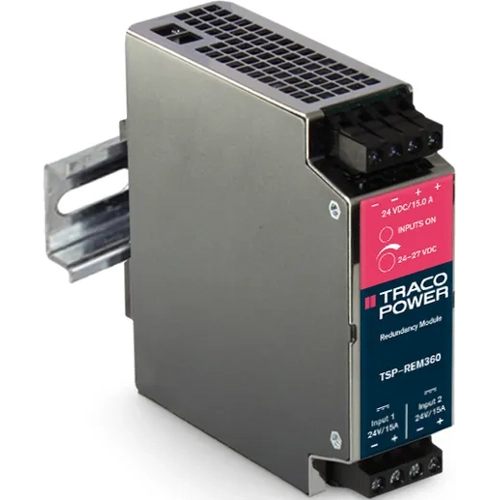

Redundancy module TRACO POWER TSP-REM 360
With this module and two power supplies of the TSP series (of same type) a highly reliable, redundant power system can be configured without any additional components. This module enforces the equivalent sharing of the output current of the power supplies. In the event of a failed or disconnected power supply, the second unit will automatically supply the full current to the load. The redundancy of the system is monitored and, indicated by an alarm output. The inputs are hot swappable.
Features
- Module for true current sharing operation
- Alarm outputs, redundancy OK signal
- Hot swappable inputs
- Remote On/Off
- International safety approval package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | redundancy module | |
| Version | 24 VDC, 15 A | |
| Suitable for | TSP 90-124/N, TSP 180-124, TSP 360-124 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
