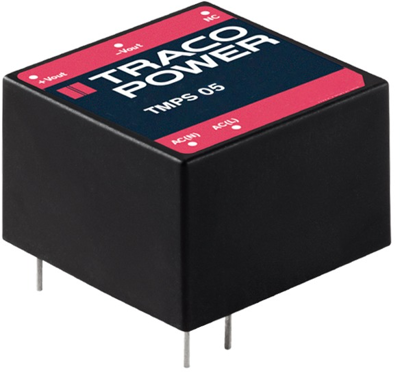

TMPS 05-124 | TRACO POWER
AC/DC converter, 85-264 VAC/120-370 VDC, 5 W, 1 output, 24 VDC, TMPS 05-124
Unit Price (€ / pc.)
19.3613 € *
Available in 7 Days: 977 pcs. - if ordered today
Total Price:
19.36 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3613 €
10 pcs.
17.4216 €
*incl. VAT plus shipping costs
Subject to prior sale
Netzmodule Typ Traco TMPS 05.
Eingangsspannungsbereich: 85 bis 264 VAC, 120 bis 370 VDC, 47 bis 63 Hz, Ausgangsleistung: 5,0 W, Einstellgenauigkeit der Ausgangsspannung: ±2,0 %, Regelabweichung bei Eingangsänderung: max. 1,0 %, Regelabweichung der Laständerung: max. 1,0 %, Isolationsspannung: 3000 VAC, Schutzklasse II, Betriebstemperatur: –25 bis +70 °C. Tabellenangaben: Typ, Ausgangsspannung, Ausgangsstrom, Wirkungsgrad typ.
Type: TMPS 05-124, 24 VDC, 0,208 A, 83 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 208 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 85-264 VAC/120-370 VDC | |
| Power | 5 W | |
| efficiency | 83 % | |
| Design | PCB mounting | |
| Isolation voltage | 3 kV | |
| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 16.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
