TMPS 05-105 | TRACO POWER
AC/DC converter, 85-264 VAC/120-370 VDC, 5 W, 1 output, 5 VDC, TMPS 05-105
Unit Price (€ / pc.)
19.1709 € *
Available in 7 Days: 807 pcs. - if ordered today
Total Price:
19.17 € *
Price list
Quantity
Price per unit*
1 pcs.
19.1709 €
10 pcs.
17.2431 €
*incl. VAT plus shipping costs
Subject to prior sale

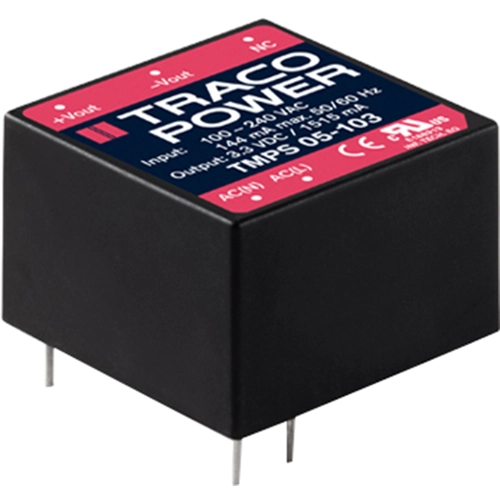

AC/DC Power Supply, TMPS 05-105, TRACO POWER
The TMPS 05-105 is an AC/DC power supply module in a lightweight, fully encapsulated plastic casing for PCB mounting. This 5 W module is the ideal solution for low power or segregated circuits when space is critical or for the efficient powering of a standby mode when compliance to ErP directive is required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 85-264 VAC/120-370 VDC | |
| Power | 5 W | |
| efficiency | 80 % | |
| Design | PCB mounting | |
| Isolation voltage | 3 kV | |

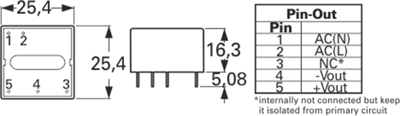

| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 16.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
