TMP 07103 | TRACO POWER
AC/DC converter, 85-264 V, 4.6 W, 1 output, 3.3 V, TMP 07103
Unit Price (€ / pc.)
31.5231 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
31.52 € *
Price list
Quantity
Price per unit*
1 pcs.
31.5231 €
10 pcs.
28.3696 €
*incl. VAT plus shipping costs
Subject to prior sale
Power modules, type Traco TMP.
Flat, molded switching mode power supply module with short-circuit and overload protection; Input voltages: 85 to 264 VAC, 120 to 370 VDC. Line frequency: 47 to 400 Hz. Output voltage adjustment tolerance: ±2.0 %. Control error on input fluctuation: max. 1.0 %. Insulation voltage: 3000 VAC. Insulation resistance: 100 Mohm, safety class II. Operating temperatures: –25 to +60 °C.
For PCB mounting, type TMP 07.
Technical attributes (type, max. output power, number of outputs, output voltage, output current): TMP 07103, 4.6 W, 1 x OUT, 3.3 VDC, 1400 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.4 A | |
| Output voltage DC | 3.3 V | |
| Input voltage AC | 85-264 V | |
| Power | 4.6 W | |
| efficiency | 70 % | |

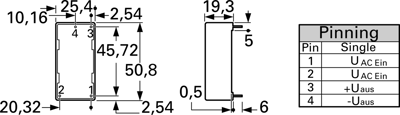

| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 19.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
