TMM 60115 | TRACO POWER

AC/DC converter, 85-264 VAC/120-370 VDC, 60 W, 1 output, 15 VDC, TMM 60115

Order No.: 32C2260
EAN: 7613441029825
MPN:
TMM 60115
Series: TMM 24
TMM 60115 TRACO POWER AC/DC Converters

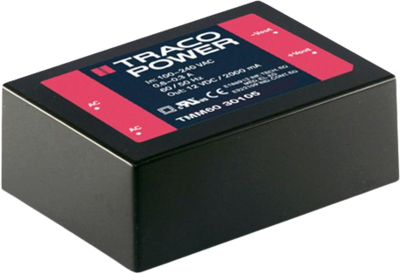

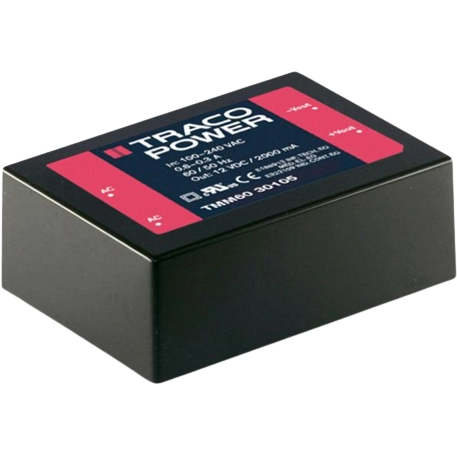

Image may differ
Unit Price (€ / pc.)
101.1500 € *
Available in 7 Days: 8 pcs. - if ordered today
Total Price:
101.15 € *
Price list
Quantity
Price per unit*
1 pcs.
101.1500 €
10 pcs.
91.0231 €
*incl. VAT plus shipping costs
Subject to prior sale

AC/DC Power supply, TMM 60115, TRACO POWER

The high efficiency and the use of highest grade components make the units suitable for an operating temperature range of –40°C to +60°C while it goes up to 75°C with 50% load derating. EMI/EMC characteristics and the safety approval package qualify this module not only for medical devices but also for demanding applications in transportation systems and for equipment in industrial an commercial environment.

Features

  • Fully encapsulated low profile plastic casing in PCB
  • –40°C start-up temperature
  • Safety class II prepared
  • Protection against over-temperature, overload and short circuit
Technical specifications
Filter Property Value
Number of outputs 1
Output current 4000 mA
Output voltage DC 15 VDC
Input voltage AC 85-264 VAC/120-370 VDC
Power 60 W
efficiency 87 %
Design PCB mounting
Isolation voltage 4 kV
Length 88.9 mm
Width 67.5 mm
Height 34.2 mm
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
