TMLM 04115 | TRACO POWER

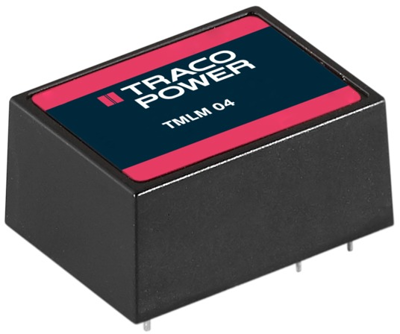

AC/DC converter, 90-264 VAC/120-370 VDC, 4 W, 1 output, 15 VDC, TMLM 04115
Unit Price (€ / pc.)
17.6596 € *
Available in 7 Days: 484 pcs. - if ordered today
Power supply modules, type Traco TMLM.
In molded plastic case, with solder pins for PCB mounting. Short-circuit and overload protection. RF interference suppression to EN 55022 Class B and FCC (Level B).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 267 mA | |
| Output voltage DC | 15 VDC | |
| Input voltage AC | 90-264 VAC/120-370 VDC | |
| Power | 4 W | |
| efficiency | 74 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 36.5 mm | |
| Width | 27 mm | |
| Height | 17.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
