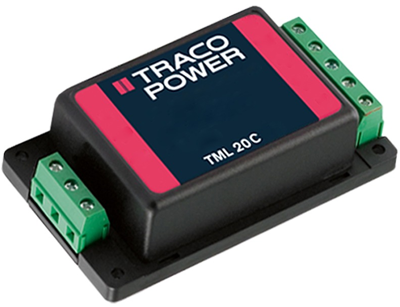

TML 20212C | TRACO POWER
AC/DC converter, 90-264 VAC/100-375 VDC, 20 W, 2 outputs, ±12 VDC, TML 20212C
Unit Price (€ / pc.)
71.1144 € *
Available in 7 Days: 72 pcs. - if ordered today
Total Price:
71.11 € *
Price list
Quantity
Price per unit*
1 pcs.
71.1144 €
10 pcs.
63.9982 €
*incl. VAT plus shipping costs
Subject to prior sale
Power modules, type Traco TML.
Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B)
For chassis mounting, type TML 20.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 833 mA | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 90-264 VAC/100-375 VDC | |
| Power | 20 W | |
| efficiency | 82 % | |
| Design | chassis mounting | |
| Isolation voltage | 3 kV | |
| Length | 96 mm | |
| Width | 54.6 mm | |
| Height | 27.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
