TMG 15124 | TRACO POWER

AC/DC converter, 120-370 V, 15 W, 1 output, 24 VDC, TMG 15124

Order No.: 32C2972
EAN: 7613441028545
MPN:
TMG 15124
Series: TMG
TMG 15124 TRACO POWER AC/DC Converters

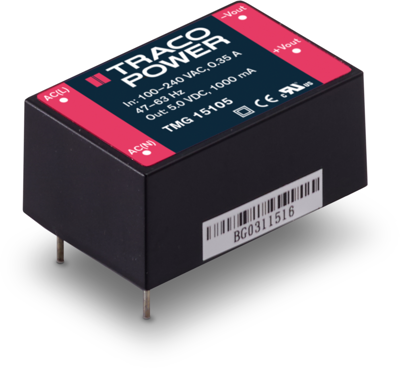

Image may differ
Unit Price (€ / pc.)
41.3763 € *
Available in 7 Days: 117 pcs. - if ordered today
Total Price:
41.38 € *
Price list
Quantity
Price per unit*
1 pcs.
41.3763 €
10 pcs.
37.2351 €
*incl. VAT plus shipping costs
Subject to prior sale

Power supply module, TMG 15124, TRACO

The TMG series AC/DC power modules are supplied in a fully encapsulated plastic housing. They are ultra-compact, energy efficient and optimized in the price-performance ratio for the prevailing market requirements. The high efficiency and the use of high-quality components make these modules suitable for an operating temperature range of -40°C to +70°C. Together with a very low no-load power consumption, they are suitable for applications that comply with the ErP directive. The modules are protected against short circuit and overvoltage. EMI/EMC characteristics and the safety approval package qualify them for demanding applications in equipment for industrial or commercial environments.

Features

  • Completely encapsulated power supplies in plastic housing for PCB mounting
  • Fully regulated outputs
  • High efficiency of up to 90
  • Universal input range 90 to 264 VAC
  • Operating temperature range: -40°C to max. +70°C
Technical specifications
Filter Property Value
Number of outputs 1
Output current 625 mA
Output voltage DC 24 VDC
Input voltage AC 120-370 V
Power 15 W
efficiency 85 %
Design PCB module
Isolation voltage 3 kV
Length 41.2 mm
Width 27.2 mm
Height 19.1 mm
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
