TLP293(GR-TPL,E(T | Toshiba

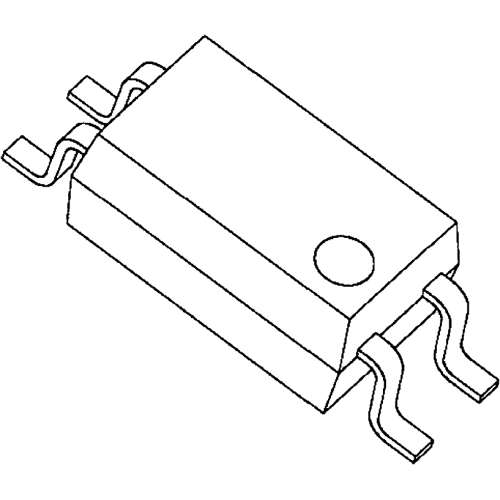

Toshiba optocoupler, SOIC-4, TLP293(GR-TPL,E(T
Unit Price (€ / pc.)
0.1749 € *
Standard delivery time from the manufacturer is: 24 Weeks
Photocoupler, TLP293(GR-TPL,E(T, Toshiba
The TLP293(GR-TPL,E(T is a low input and high isolation type photocoupler that consists of a phototransistor optically coupled to an infrared LED in a SO4 package. It is suitable for high density surface mounting applications such as programmable controllers.
Applications
- Switching power supplies
- Programmable Logic Controllers (PLCs)
- I/O Interface boards
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of channels | 1 | |
| max. operating temperature | 125 °C | |
| Rise time | 2 s | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Enclosure | SOIC-4 | |
| Isolation voltage | 3.75 kV | |
| Assembly | SMD | |
| Fall time | 3 s |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 5,000 pieces |
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
