TLP104(TPL,E(T | Toshiba

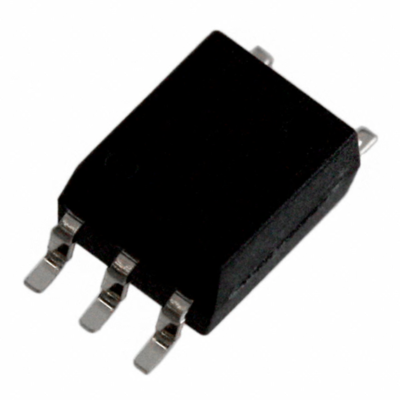

Toshiba optocoupler, SOIC-6, TLP104(TPL,E(T
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Leadtime: On Request **
Optocoupler, TLP104(TPL,E(T, Toshiba
The Toshiba TLP104 consists of GaAℓAs infrared light emitting diodes and integrated high gain, high-speed photodetectors. The TLP104 is housed in the SO6 package. The output stage is an open collector type.
The photodetector has an internal Faraday shield that provides a guaranteed common-mode transient immunity of ±15 kV/μs. TLP104 guarantees minimum and maximum of propagation delay time, switching speed dispersion, and high common mode transient immunity. Therefore TLP104 is suitable for isolation interface between IPM (Intelligent Power Module) in motor control application.
Features
- Inverter logic type (Open collector output)
- Guaranteed performance over temperature: -40 to 125°C
- Power supply voltage: -0.5 to 30 V
- Threshold Input Current: IFHL = 5.0 mA (max)
Technical specifications
| Assembly | SMD | |
| Enclosure | SOIC-6 | |
| Output current | 8 mA | |
| min. operating temperature | -40 °C | |
| Data transmission rate | 1000000 mb/s | |
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 125 °C | |
| Number of channels | 1 |
Download
Logistics
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
