170 02 100 | Thora

Shaft damper, 360°, 10 N/cm ±1.5, 170 02 100

Order No.: 89B5084
EAN: 4099889505481
MPN:
170 02 100
AD-FA1-100
Series: AD-FA1

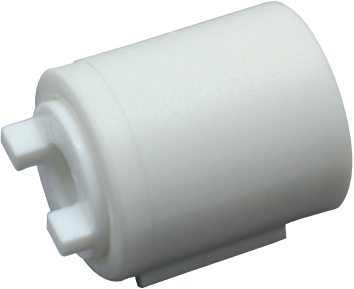

170 02 100 Thora Vibration Damper Image 1
170 02 100 Thora Vibration Damper Image 2
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
749.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.7497 €

Shaft dampers, type Thora AD.

Material: base (PA 6 GF15), rotor (POM), O-ring (NBR), liquid (silicon oil). Operating temperatures: - 30 to +90 °C. Useful life: 50000 cycles (1 cycle: one clockwise plus one counterclockwise revolution).

Shaft dampers, type AD-FA1.

Shaft damper, 360°, free rotation, with 1.5 x 2.0 mm fins.

Technical attributes (type, torque): 170 02 100, 10 N/cm ±1.5

Technical specifications
Filter Property Value
For grommet type AD-FA1-100
Lifetime 50.000 cycles
max. operating temperature 90 °C
Height 16 mm
Torque 10 Ncm
Material rotor (POM), base (PC), O-ring (NBR), liquid (silicone oil)
Outer diameter 13 mm
min. operating temperature -30 °C
Axis Dampers 360° free rotating
Colour white
Version axle damper
Logistics
Property Value
Customs tariff number 39269097
Country of origin IT
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
