170 01 200 | Thora

Shaft damper, 2 x 155°, 20 N/cm ±3.0, 170 01 200

Order No.: 89B5081
EAN: 4099889505467
MPN:
170 01 200
AD-BA 20Ncm

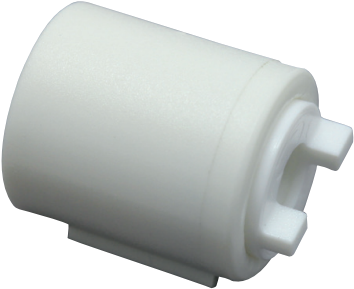

170 01 200 Thora Vibration Damper Image 1
170 01 200 Thora Vibration Damper Image 2
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,547.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.5470 €

Shaft dampers, type Thora AD.

Material: base (PA 6 GF15), rotor (POM), O-ring (NBR), liquid (silicon oil). Operating temperatures: - 30 to +90 °C. Useful life: 50000 cycles (1 cycle: one clockwise plus one counterclockwise revolution plus 2 s pause).

Shaft dampers, type AD-BA.

Shaft damper, 2 x 155°, with 1.5 x 2.0 mm fins.

Technical attributes (type, torque): 170 01 200, 20 N/cm ±3.0

Technical specifications
Colour white
Outer diameter 13 mm
Height 16 mm
Axis Dampers 2 x 155°
Version axle damper
min. operating temperature -30 °C
Lifetime 50.000 cycles
Material base (PA 6 GF15) rotor (POM), O-ring (NBR), liquid (silicone oil)
For grommet type AD-BA-200
Torque 20 Ncm
max. operating temperature 90 °C
Logistics
Country of origin IT
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
