220 15 01 | Thora
Mounting base, max. bundle Ø 6.3 mm, aluminum, silver, self-adhesive, (L x W x H) 16 x 11 x 9.5 mm, 220 15 01
Order No.: 12H4120
EAN: 4099891205102
MPN:
220 15 01
ACC-01
Unit Price (€ / pc.)
0.3094 € *
Available: 132,205 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3094 €
100 pcs.
0.2737 €
1000 pcs.
0.2428 €
5000 pcs.
0.2130 €
10000 pcs.
0.1821 €
*incl. VAT plus shipping costs
Subject to prior sale

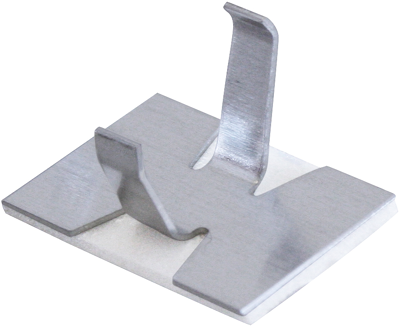

Cable clip made of soft aluminum, type ACC 01
Self-adhesive, for maximum 6.33-mm wire or cable harness diameter. Made of special aluminum alloy. With excellent holding strength and long-term adhesive strength up to +70 °C.

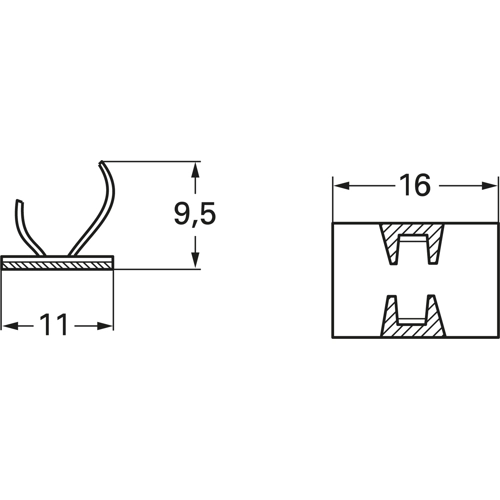

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Width | 11 mm | |
| Self-adhesive | Yes | |
| Product type | mounting base | |
| Length | 16 mm | |
| Height | 9.5 mm | |
| Colour | silver | |
| max. Bundle diameter | 6.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 83059000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
