170 90 01 | Thora
Interlock, POM/PA66, (L x W x H) 12.2 x 11 x 7 mm, black, 170 90 01
Order No.: 18H8732
EAN: 4099889551563
MPN:
170 90 01
DL
Unit Price (€ / pc.)
2.2134 € *
Available: 196 pcs.
Total Price:
2.21 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2134 €
10 pcs.
1.8802 €
50 pcs.
1.7374 €
100 pcs.
1.6422 €
500 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale

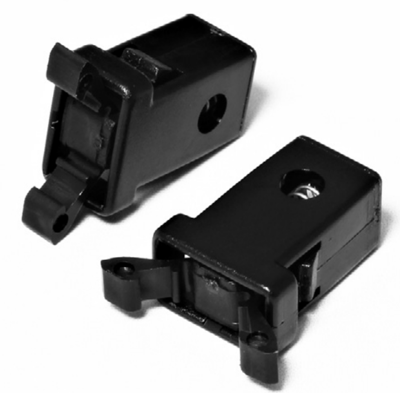

Push-push locks, 170 90 01, Thora
With push-push opening and locking; Opening/locking force: 5.0 N, Material: POM/PA 66. Inflammability: UL 94 HB. Temperature range: -30 to +80 °C. The locking and snap-in elements are available on separate order.
Push-push lock actuating elements.

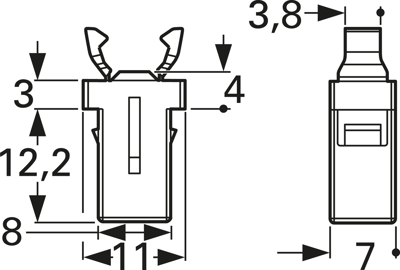

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 11 mm | |
| Length | 12.2 mm | |
| Product type | interlock | |
| Colour | black | |
| Height | 7 mm | |
| Material | POM/PA66 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
