7TCG009450R0198 | Thomas & Betts
Cable tie, PA, (L x W) 185.67 x 4.9 mm, bundle-Ø 3.5 to 45 mm, black, UV resistant, -40 to 85 °C, 7TCG009450R0198
Unit Price (€ / pc.)
0.0988 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
98.77 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0988 €
5000 pcs.
0.0881 €
*incl. VAT plus shipping costs
Subject to prior sale

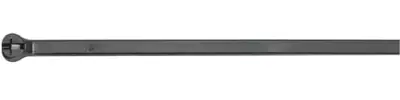

Cable tie, TYB25MX, THOMAS&BET
The TYB25MX is a cable tie with low profile head that is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. The non-magnetic stainless steel locking device insures both maximum strength and the right tightness.
Features
- Weather and UV resistant
- Halogen free
- Silicone free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 45 mm | |
| UV-resistant | Yes | |
| max. operating temperature | 85 °C | |
| Length | 185.67 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Halogen free | Yes | |
| Min holding force | 222 N | |
| Thickness | 1.09 mm | |
| Material | PA | |
| Width | 4.9 mm | |
| min. Bundle diameter | 3.5 mm | |
| Product type | cable tie |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |

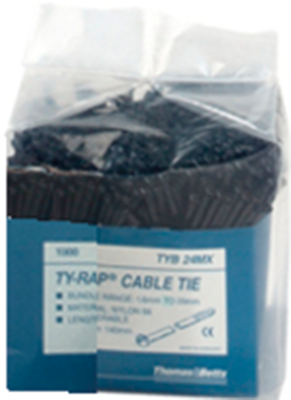

| Original Packaging | Bag with 1,000 pieces |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
