7TCG009450R0193 | Thomas & Betts

Cable tie, PA, (L x W) 185.67 x 4.9 mm, bundle-Ø 3.5 to 45 mm, natural, -40 to 85 °C, 7TCG009450R0193

Order No.: 12H5673
EAN: 5414363067092
MPN:
7TCG009450R0193
TYB25M
Series: Ty-Rap

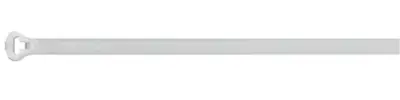

7TCG009450R0193 Thomas & Betts Cable Ties Image 1

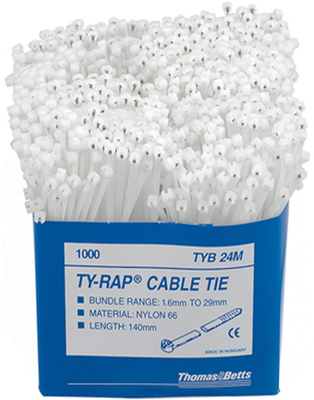

7TCG009450R0193 Thomas & Betts Cable Ties Image 2
Image may differ
Unit Price (€ / pc.)
0.0928 € *
Available: 1,000 pcs.
Total Price:
92.82 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0928 €
5000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tie, TYB25M, THOMAS&BET

The TYB25M is a cable tie with low profile head that is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. The non-magnetic stainless steel locking device insures both maximum strength and the right tightness.

Features

  • Weather and UV resistant
  • Halogen free
  • Silicone free
Technical specifications
Filter Property Value
Width 4.9 mm
min. operating temperature -40 °C
Min holding force 222 N
min. Bundle diameter 3.5 mm
Thickness 1.09 mm
Product type cable tie
Material PA
UV-resistant No
Length 185.67 mm
Colour natural
max. operating temperature 85 °C
max. Bundle diameter 45 mm
Halogen free Yes
Logistics
Property Value
Customs tariff number 39269097
Country of origin HU
Original Packaging Bag with 1,000 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
