TE180204102 | TH Contact
Emergency stop, rotary release, mounting Ø 16.2 mm, unlit, 250 V, 2 Form B (N/C) + 1 Form A (N/O), TE180204102
Order No.: 12G2606
EAN: 4099889257564
MPN:
TE180204102
180 204 102
Unit Price (€ / pc.)
56.2632 € *
Available: 18 pcs.
Total Price:
56.26 € *
Price list
Quantity
Price per unit*
1 pcs.
56.2632 €
10 pcs.
52.9431 €
50 pcs.
49.6349 €
100 pcs.
46.3386 €
250 pcs.
43.0304 €
*incl. VAT plus shipping costs
Subject to prior sale

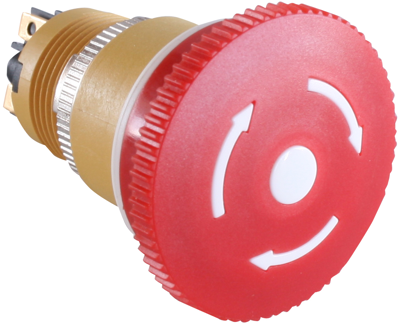

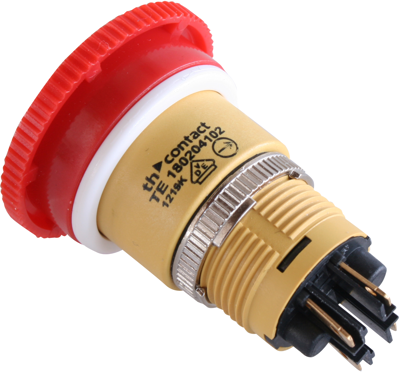

Emergency stop pushbutton, TE180204102, TH-CONTACT
Emergency switch flat design, contact: 2 NC, operating button 30 mm, rotary release not illuminated, drilling 16,2 mm, Protection: IP 65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resetting | rotary release | |
| Type of mounting | threaded ring | |
| Latching switching function | 2 Form B (N/C) + 1 Form A (N/O) | |
| Rated voltage | 250 V | |
| Height | 30.5 mm | |
| Collar shape of the front frame | round | |
| Degree of protection (IP) | IP65 | |
| illuminated | No | |
| Installation diameter | 16.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
