TE180203101 | TH Contact

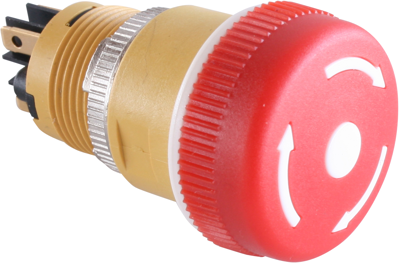

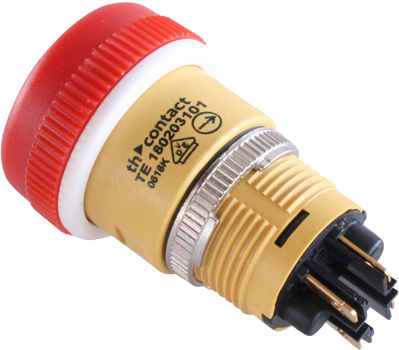

Emergency stop, rotary release, mounting Ø 16.2 mm, unlit, 250 V, 1 Form A (N/O) + 1 Form B (N/C), TE180203101
Order No.: 12G2600
EAN: 4099889257533
MPN:
TE180203101
180 203 101
Unit Price (€ / pc.)
62.1418 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
62.14 € *
Price list
Quantity
Price per unit*
1 pcs.
62.1418 €
10 pcs.
58.5956 €
50 pcs.
55.0375 €
100 pcs.
51.4913 €
250 pcs.
48.5282 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop pushbutton, TE180203101, TH-CONTACT
Emergency switch flat design, contact: 1NO + 1NC, operating button 25 mm, rotary release not illuminated, drilling 16,2 mm, Protection: IP 65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Resetting | rotary release | |
| Installation diameter | 16.2 mm | |
| Degree of protection (IP) | IP65 | |
| Type of mounting | threaded ring | |
| Height | 30.5 mm | |
| illuminated | No | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Collar shape of the front frame | round | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
