216-3340-00-0602 | Textool

Zero force socket, 16 pole, pitch 2.54 mm (7.62 mm), copper beryllium for DIL-IC, 216-3340-00-0602

Order No.: 14B732
EAN: 4099879023513
MPN:
216-3340-00-0602
Series: ZIP DIP

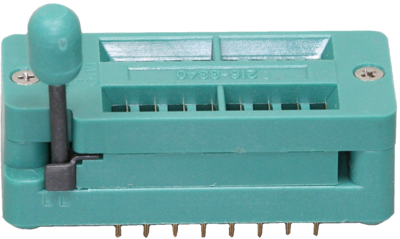

216-3340-00-0602 Textool Semiconductor Sockets, Holders Image 1
216-3340-00-0602 Textool Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
33.6413 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
33.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
33.6413 €

IC socket with lever for 2.54 mm DIPs, type 3M ZIP DIP.

With short locking lever, smooth mechanism and zero insertion force; Insulating body: polysulphone GF, UL 94 V-0. Contact material: beryllium copper, gold-plated on nickel primer. Rated current: 1.0 A. Operating temperatures: –55 to +150 °C.

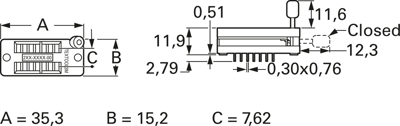

Technical attributes (number of poles, dimensions): 16-pole, A 35.30, B 15.20, C 7.62 mm

Technical specifications
Rated current 1 A
Grid 2.54 mm
Width 15.2 mm
Length 35.3 mm
Pin number 16 pole
Version zero force socket
min. operating temperature -55 °C
Material PSU
Suitable for DIL-IC
Contact material copper beryllium
max. operating temperature 150 °C
Logistics
Country of origin JP
Customs tariff number 85369095
Original Packaging Bar with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
