REF5045AIDGKT | Texas Instruments
REF5045AIDGKT
Order No.: 58S2151
MPN:
REF5045AIDGKT
Unit Price (€ / pc.)
3.6414 € *
Standard delivery time from the manufacturer is: 1 Week

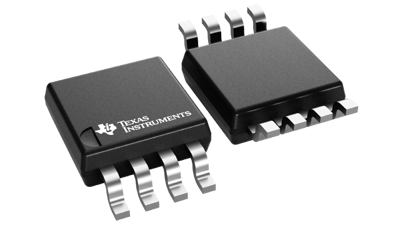

Voltage Reference, REF5045AIDGKT, Texas Instruments
The REF5045AIDGKT is a low-noise, low-drift, very high precision voltage reference. The reference is capable of both sinking and sourcing current and has excellent line and load regulation. It achieves excellent temperature drift (2.5ppm/°C) and high accuracy (0.025%) using proprietary design techniques. These features, combined with very low flicker noise (0.5μVPP/V), make the REF5050 an excellent choice for use in high-precision data acquisition systems.
Applications
- Precision data acquisition systems
- Semiconductor test equipment
- Industrial process controls
- Medical instrumentation
- Pressure and temperature transmitters
- Lab and field instrumentation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | VSSOP-8 | |
| Assembly | SMD | |
| Input voltage | 18 V | |
| Output voltage DC | 2.048-10 V | |
| Output current | 10 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
