REF3030AIDBZR | Texas Instruments

Voltage Reference IC, SOT-23-3, REF3030AIDBZR

Order No.: 53S6079
EAN: 4099879104328
MPN:
REF3030AIDBZR
REF3030AIDBZR Texas Instruments Voltage Reference ICs

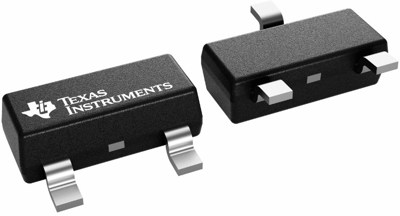

Image may differ
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.9401 €

Voltage reference, REF3030AIDBZR, Texas Instruments

The REF3030AIDBZR is a precision, low-power, low-dropout voltage, reference family available in a tiny 3-pin SOT-23 package. This device offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42 µA (typical).The low power consumption and the relatively high precision makes this product very attractive for looppowered industrial applications such as pressure and temperature transmitter applications.

Features

  • Low dropout: 1 mV
  • High output current: 25 mA
  • Excellent specified drift performance

Applications

  • Temperature and pressure transmitters
  • Portable, battery-powered equipment
  • Data acquisition systems
  • Medical equipment
  • Handheld test equipment
Technical specifications
Filter Property Value
Enclosure SOT-23-3
Assembly SMD
Input voltage 5.5 V
Output voltage DC 3 V
Output current 25 mA
min. operating temperature -40 °C
max. operating temperature 125 °C
Logistics
Property Value
Country of origin TW
Original Packaging Reel with 3,000 pieces
Customs tariff number 85423390
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
