TL7702ACD | Texas Instruments

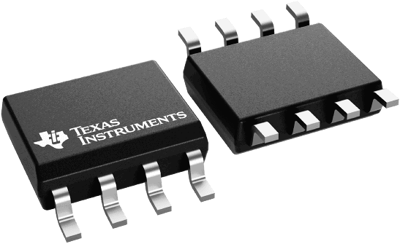

Reset switch, TL7702ACD, Texas Instruments

The TL7702ACD is an integrated-circuit supply-voltage supervisor designed specifically for use as a reset controller in a microcomputer or microprocessor system. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power-up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which the RESET and RESET outputs go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, the RESET and RESET outputs become active.

Features

• Power-On Reset Generator
• Automatic Reset Generation After Voltage Drop
• Wide Supply-Voltage Range
• Precision Voltage Sensor
• Temperature-Compensated Voltage Reference
• Externally Adjustable Pulse Duration
