LM77CIM-3 | Texas Instruments

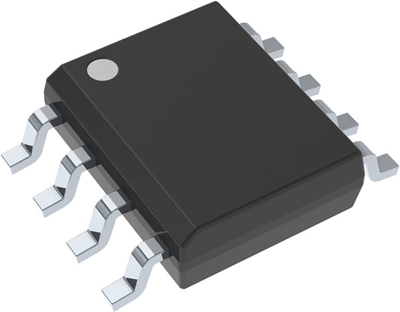

Digital Temperature Sensor, LM77CIM-3, Texas Instruments

The 3 is a digital temperature sensor and thermal window comparator with an I²C Serial Bus interface. The window-comparator architecture of the 3 eases the design of a temperature control system conforming to the ACPI (Advanced Configuration and Power Interface) specification for personal computers. The open-drain Interrupt (INT) output becomes active whenever temperature goes outside a programmable window, while a separate Critical Temperature Alarm (T_CRIT_A) output becomes active when the temperature exceeds a programmable critical limit. The INT output can operate in either comparator or event mode, while the T_CRIT_A output operates in comparator mode only.

Features

• Serial Bus Interface
• Separate Open-Drain Outputs for Interrupt and Critical Temperature Shutdown
• Shutdown Mode to Minimize Power Consumption

Applications

• System Thermal Management
• Personal Computers
• Office Electronics
• Electronic Test Equipment
• Automotive
