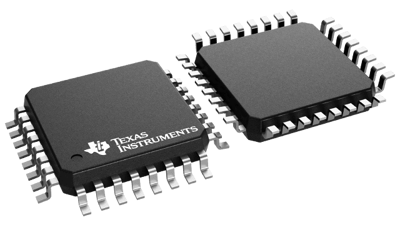

CDCLVP110VF | Texas Instruments
CDCLVP110VF
Order No.: 56S7294
MPN:
CDCLVP110VF
Unit Price (€ / pc.)
15.1249 € *
Standard delivery time from the manufacturer is: 1 Week
Binary Counter, CDCLVP110VF, Texas Instruments
The CDCLVP110VF device consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of either an RC or crystal oscillator circuit. A Master Reset input is provided, which resets the counter to the all-0’s state and disables the oscillator. A high level on the MR line accomplishes the reset function. The state of the counter is advanced one step in binary order on the negative transition of φI (and φO).
Features
- Onboard Oscillator
- Common Reset
- Negative-Edge Clocking
- Balanced Propagation Delay and Transition Times
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-32 | |
| Input voltage | 0.5 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | differential | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
