UC2845N | Texas Instruments

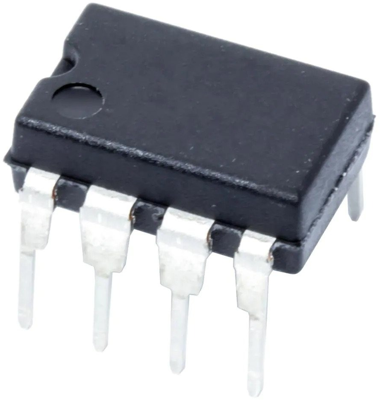

UC2845N, Current-Mode PWM Controller, PDIP8, Texas Instruments
Order No.: 50S2232
EAN: 4099879102256
MPN:
UC2845N
Unit Price (€ / pc.)
1.7136 € *
Available: 1 pcs.
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
50 pcs.
1.4518 €
100 pcs.
1.4042 €
200 pcs.
1.3447 €
1000 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
IC, UC2845N, Texas Instruments
The UC2845N provides the features that are necessary to implement off-line or DC-to-DC fixed-frequency current-mode control schemes, with a minimum number of external components. The internally implemented circuit includes an undervoltage lockout (UVLO), featuring a start-up current of less than 1 mA, and a precision reference trimmed for accuracy at the error amplifier input.
Features
- Pulse-by-pulse current limiting
- Double-pulse suppression
- Error amplifier with low output resistance
- Up to 500-kHz operation
Applications
- Switching regulators of any polarity
- Transformer-coupled DC-DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency | 500 kHz | |
| min. operating temperature | -40 °C | |
| Enclosure | DIP-8 | |
| Assembly | THT | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
