SG3524N | Texas Instruments

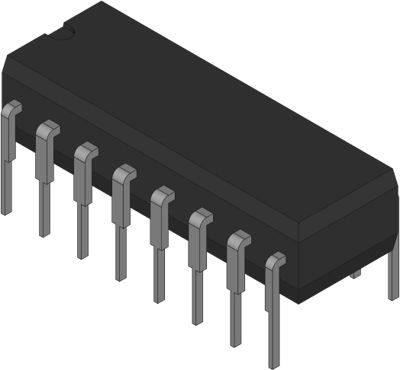

SG3524N, Regulating Pulse-Width Modulator, PDIP16
NCNR (non cancelable / non returnable)
IC, SG3524N, Texas Instruments
The SG3524N incorporate all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. It can be also used as the control elemt for high-power-output applications. The IC is designed for switching regulators of either polarity, transformer-coupled dcto-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixedfrequency, pulse-width modulation (PWM) techniques.
The complementary output allows either single-ended or push-pull application. Each device includes an onchip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, current-limiting and shutdown circuitry.
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| Frequency | 450 kHz | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MX |
| Original Packaging | Bar with 25 pieces |
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
