AM2732ADRFGQZCERQ1 | Texas Instruments

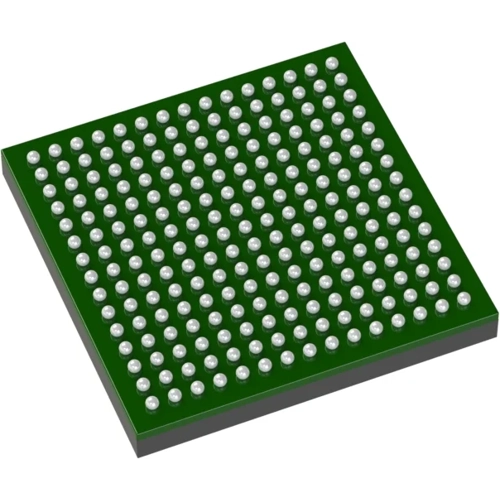

MPU 400MHZ 285NFBGA AM2732ADRFGQZCERQ1
NCNR (non cancelable / non returnable)
Sitara Microcontroller, AM2732ADRFGQZCERQ1, Texas Instruments
The AM2732ADRFGQZCERQ1 microcontroller is a highly integrated, high-performance device based on an Arm Cortex-R5F core and a C66x floating-point DSP core, designed to help original equipment manufacturers (OEMs) and original design manufacturers (ODMs) quickly bring devices to market with robust software support, rich user interfaces, and high performance. The AM273x offers the flexibility of a fully integrated mixed-processor design and includes an integrated Hardware Security Module (HSM), built-in functional safety support, large on-die RAM, and a wide operating temperature range, providing a safe, secure, and cost-effective solution for many industrial and automotive applications. The device is supported as part of a complete platform, including hardware reference designs, software drivers, DSP libraries, sample software configurations and applications, an API guide, and comprehensive user documentation.
Applications
- Robotics
- Factory automation safety guards
- Building automation
- Automotive audio
- Traffic monitoring
- Machine vision
- Industrial transport
| Filter | Property | Value |
|---|---|---|
| Enclosure | LFBGA-285 | |
| Assembly | SMD | |
| Processor core | 2 | |
| Core Size | 32 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 140 °C |
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423190 |
| Country of origin | PH |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
