TLV2221IDBVR | Texas Instruments

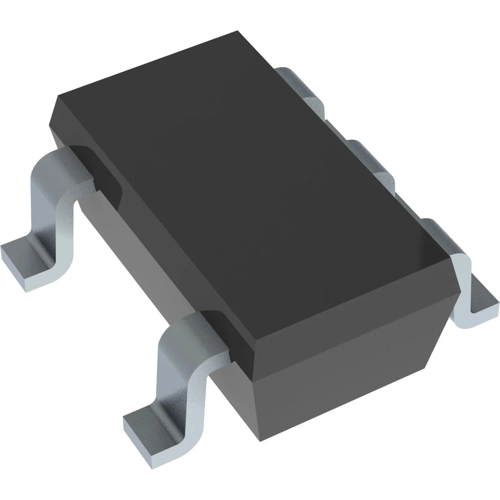

Single operational amplifier, SOT-23, TLV2221IDBVR
NCNR (non cancelable / non returnable)
Operational Amplifier, TLV2221IDBVR, Texas Instruments
The TLV2221IDBVR is a single low-voltage operational amplifier available in the SOT-23 package. It offers a compromise between the AC performance and output drive of the TLV2231 and the micropower TLV2211. It consumes only 150 µA (max) of supply current, making it ideal for battery-powered applications. The device exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications and is fully characterized at 3 V and 5 V, optimized for low-voltage operation. The TLV2221IDBVR, with high input impedance and low noise, is excellent for small-signal conditioning of high-impedance sources, such as piezoelectric transducers. Its micropower dissipation combined with 3-V operation makes it suitable for hand-held monitoring and remote-sensing applications. The rail-to-rail output feature with single or split supplies also makes the TLV2221IDBVR a strong choice for interfacing with analog-to-digital converters (ADCs).
Features
- Common-Mode Input Voltage Range Includes Negative Rail
- Macromodel Included
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | operational amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | TW |
| Customs tariff number | 85423390 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
