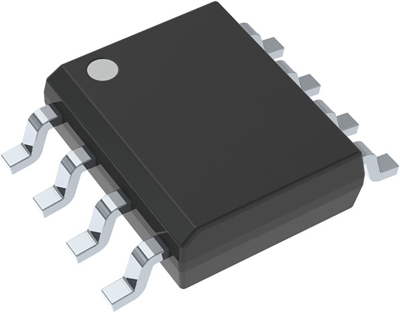

TLC271BCD (SMD) | Texas Instruments

Programmable Low-Power Operational Amplifier, TLC271BCD (SMD), Texas Instruments

The TLC271BCD (SMD) operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271BCD (SMD) offers a bias-select mode that allows the user to select the best combination of power dissipation and AC performance for a particular application. This device uses Texas Instruments silicon-gate LinCMOS technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.

Using the bias-select option, this cost-effective device can be programmed to span a wide range of applications that previously required BiFET, NFET, or bipolar technology. The extremely high input impedance and low bias currents, in conjunction with good common-mode rejection and supply voltage rejection, make the TLC271BCD (SMD) a good choice for new state-of-the-art designs as well as for upgrading existing designs.

Features

• Single-Supply Operation
• ESD-Protection Circuitry
• Designed-In Latch-Up Immunity
