TLC2201CP | Texas Instruments

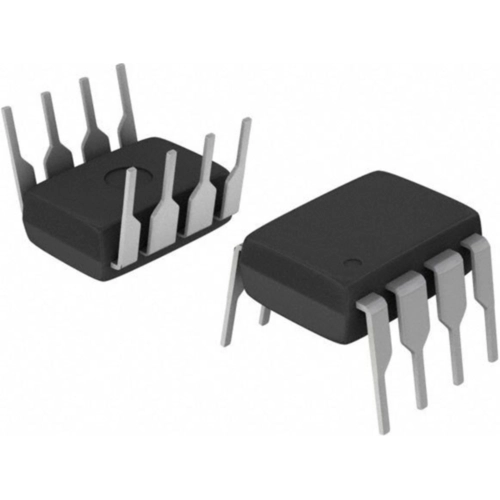

Single low noise operational amplifier, PDIP-8, TLC2201CP
Order No.: 49S4900
EAN: 4099879094018
MPN:
TLC2201CP
Unit Price (€ / pc.)
4.9266 € *
Standard delivery time from the manufacturer is: 6 Weeks
Operational amplifier, TLC2201CP, TI
The TLC2201CP is a low-noise operational amplifier. This device combines the noise performance of the lowest-noise JFET amplifier with the dc precision. The Advanced LinCMOS process uses silicon-gate technology to obtain input offset voltage stability with temperature and time that far exceeds that obtainable using metal-gate technology.
Features
- Low input offset voltage
- Excellent offset voltage stability with temperature
- Low input bias current
- Common-Mode input voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-8 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Version | low noise operational amplifier | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
