OPA692IDBVR | Texas Instruments

OPA692IDBVR

Order No.: 57S9713
MPN:
OPA692IDBVR
Series: OPA692
OPA692IDBVR Texas Instruments Operation Amplifiers

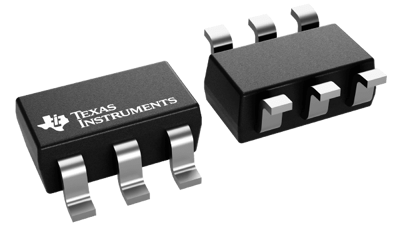

Image may differ
Unit Price (€ / pc.)
2.2253 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6,675.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
2.2253 €

Operational Amplifier, OPA692IDBVR, Texas Instruments

This product provides an easy-to-use, broadband fixed-gain video buffer amplifier. Depending on the external connections, the internal resistor network may be used to provide either a fixed gain of +2 video buffer or a gain of +1 or –1 voltage buffer. Operating on a very low 5.1 mA supply current, it offers a slew rate and output power normally associated with a much higher supply current. A new output stage architecture delivers high output current with minimal headroom and crossover distortion. This enables exceptional single-supply operation. Using a single +5 V supply, this can deliver a 1 V to 4 V output swing with over 120 mA drive current and greater than 200 MHz bandwidth. This combination of features makes the product an ideal RGB line driver or single-supply Analog-to-Digital Converter (ADC) input driver.

Applications

  • Broadband video line drivers
  • Multiple line video da
  • Portable instruments
  • Adc buffers
  • Active filters
Technical specifications
Filter Property Value
Enclosure SOT-23
Assembly SMD
Number of channels 1
Version buffer operational amplifier
min. operating temperature -40 °C
max. operating temperature 85 °C
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
