OPA4354AIDR | Texas Instruments

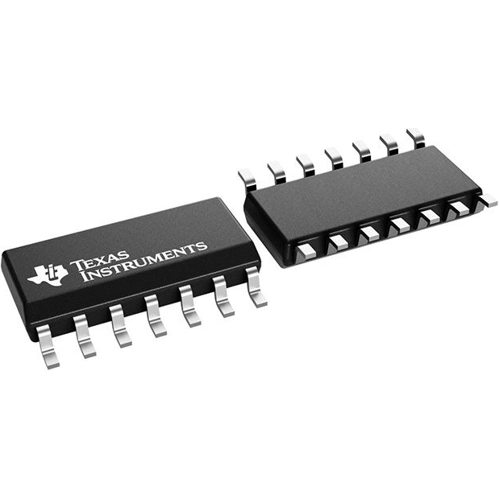

Quad rail-to-rail operational amplifier, SOIC-14, OPA4354AIDR
Order No.: 70S1586
MPN:
OPA4354AIDR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.3685 € *
Standard delivery time from the manufacturer is: 1 Week
Operational Amplifier, OPA4354AIDR, Texas Instruments
The OPA4354AIDR high-speed, voltage-feedback CMOS operational amplifier is designed for video and other applications requiring wide bandwidth. It is unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9 mA. The OPA4354AIDR is optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). The common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, supporting a wide dynamic range.
Features
- Rail-to-Rail I/O
- Thermal Shutdown
Applications
- Video Processing
- Ultrasound
- Optical Networking, Tunable Lasers
- Photodiode Transimpedance Amplifiers
- Active Filters
- High-Speed Integrators
- Analog-to-Digital Converter (ADC) Input Buffers
- Digital-to-Analog Converter (DAC) Output Amplifiers
- Barcode Scanners
- Communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-14 | |
| Assembly | SMD | |
| Number of channels | 4 | |
| Version | rail-to-rail operational amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
