OPA355NA/250 | Texas Instruments

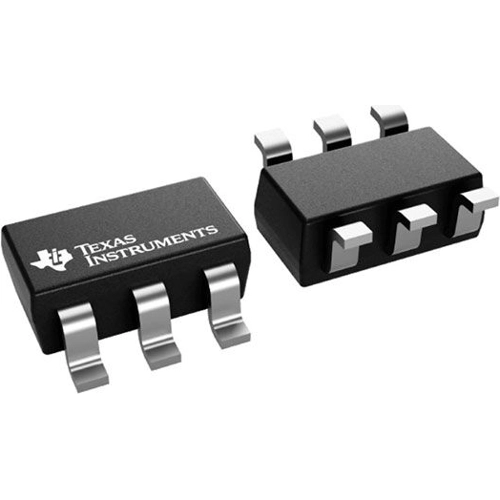

Single operational amplifier, SOT-23, OPA355NA/250
NCNR (non cancelable / non returnable)
Operational Amplifier, OPA355NA/250, Texas Instruments
The OPA355NA/250 high-speed, voltage-feedback CMOS operational amplifier is designed for video and other applications requiring wide bandwidth. The OPA355NA/250 is unity-gain stable and can drive large output currents. In addition, it has a digital shutdown (enable) function, providing power saving during idle periods and placing the output in a high-impedance state to support output multiplexing. The differential gain is 0.02% and the differential phase is 0.05°. The quiescent current is 8.3 mA. The OPA355NA/250 is optimized for operation on single supply or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). The common-mode input range extends 100 mV below ground and up to 1.5 V from V+. The output swing is within 100 mV of the rails, supporting a wide dynamic range.
Features
- Input Range Includes Ground
- Thermal Shutdown
Applications
- Video Processing
- Ultrasound
- Optical Networking, Tunable Lasers
- Photodiode Transimpedance Amplifiers
- Active Filters
- High-Speed Integrators
- Analog-to-Digital Converter (ADC) Input Buffers
- Digital-to-Analog Converter (DAC) Output Amplifiers
- Barcode Scanners
- Communications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | operational amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
| Property | Value |
|---|---|
| MSL | MSL 2 |
| Country of origin | TW |
| Customs tariff number | 85423390 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
