OPA347UA | Texas Instruments

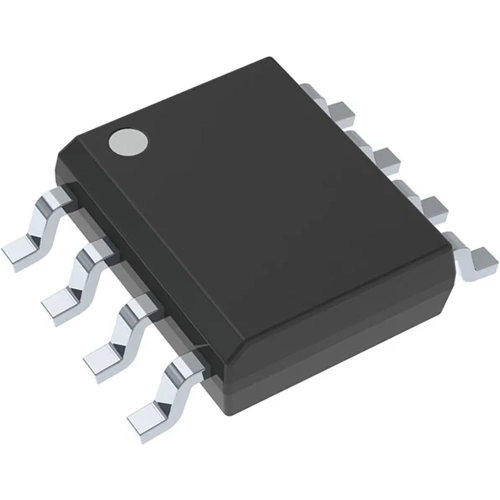

Single operational amplifier, SOIC-8, OPA347UA
Order No.: 70S1566
MPN:
OPA347UA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4994 € *
Available in 5 Days: 675 pcs. - if ordered today
Operational Amplifier, OPA347UA, Texas Instruments
The OPA347UA is a microPower, low-cost operational amplifier available in micropackages. The small size and low power consumption (34µA maximum) of the OPA347UA make it ideal for portable and battery-powered applications. Its input range extends 200mV beyond the rails, and the output range is within 5mV of the rails. The OPA347UA also features an excellent speed/power ratio with a bandwidth of 350kHz.
Applications
- Portable Equipment
- Battery-Powered Equipment
- 2-wire Transmitters
- Smoke Detectors
- Co Detectors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | operational amplifier | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
