OPA188AID | Texas Instruments

OPA188AID

Order No.: 57S8760
MPN:
OPA188AID
Series: OPA188
OPA188AID Texas Instruments Operation Amplifiers

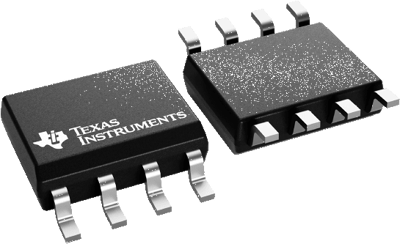

Image may differ
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
899.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
525 pcs.
1.7136 €

Operational Amplifier, OPA188AID, Texas Instruments

The operational amplifier uses TI's proprietary auto-zeroing technique to provide a low offset voltage (25-μV maximum) and near zero-drift over time and temperature. This miniature, high-precision, low-quiescent current amplifier offers a high input impedance and a rail-to-rail output swing within 15 mV of the rail. The input common-mode range includes the negative rail. Either a single or dual supply can be used in the range from 4 V to 36 V (±2 V to ±18 V).

Features

  • Rail-to-rail output
  • Input includes negative rail
  • RFI filtered inputs

Applications

  • Weight scale
  • Analog input module
  • Battery test
  • DC power supply, ac source, electronic load
  • Data acquisition (DAQ)
Technical specifications
Filter Property Value
Enclosure SOIC-8
Assembly SMD
Number of channels 1
Version precision operational amplifier
min. operating temperature -40 °C
max. operating temperature 125 °C
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
