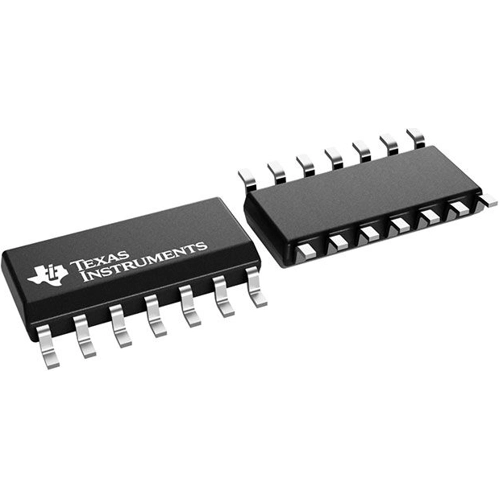

LMC6484IMX/NOPB | Texas Instruments

Operational Amplifier, LMC6484IMX/NOPB, Texas Instruments

The LMC6484IMX/NOPB device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes this device unique among rail-to-rail input amplifiers. The device is an excellent choice for a system that requires a large input signal range, such as data acquisition. The LMC6484IMX/NOPB is also an excellent upgrade for a circuit using a limited common-mode range amplifier. Maximum dynamic signal range is provided in a low-voltage and single-supply system by the rail-to-rail output swing of the LMC6484IMX/NOPB. The rail-to-rail output swing is maintained for a load down to 600Ω of the device. A specified low-voltage characteristic and low-power dissipation make the LMC6484IMX/NOPB a great choice for a battery-operated system.

Features

• Rail-to-rail input common-mode voltage range
• Rail-to-rail output swing

Applications

• Data acquisition (DAQ)
• Currency counter
• Oscilloscope (DSO)
• Intra-DC interconnect (METRO)
• Macro remote radio unit (RRU)
• Multiparameter patient monitor
• Merchant telecom rectifiers
• Train control and management
• Process analytics (pH, gas, concentration, force, and humidity)
