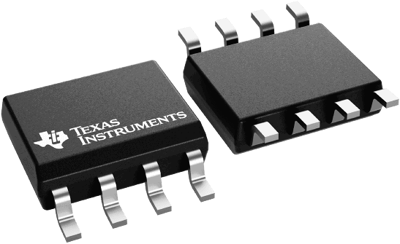

LM4876M/NOPB | Texas Instruments
Single audio amplifier, SOIC-8, LM4876M/NOPB
Order No.: 57S4091
MPN:
LM4876M/NOPB
Unit Price (€ / pc.)
1.4280 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
10 pcs.
1.2614 €
25 pcs.
1.1781 €
100 pcs.
1.0948 €
250 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Audio Power Amplifier, LM4876M/NOPB, Texas Instruments
The LM4876M/NOPB is a single 5V supply bridge-connected audio power amplifier capable of delivering 1.1W (typ) of continuous average power to an 8Ω load with 0.5% THD+N. Like other audio amplifiers in the Boomer series, the LM4876M/NOPB is designed specifically to provide high-quality output power with a minimal amount of external components. The LM4876M/NOPB does not require an output coupling capacitor, bootstrap capacitor, or snubber network. It is perfectly suited for a low-power portable system. The LM4876M/NOPB features an active-low externally controlled, micro-power shutdown mode. Additionally, the LM4876 features an internal thermal shutdown protection mechanism.
Features
- Unity-Gain Stable
- External Gain Set
Applications
- Mobile Phones
- Portable Computers
- Desktop Computers
- Low-Voltage Audio Systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | audio amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
