LM358P | Texas Instruments

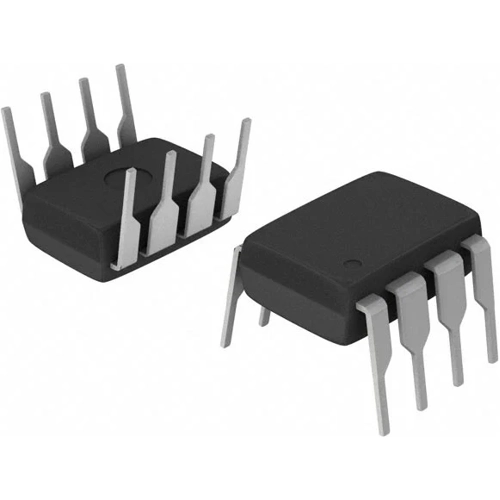

Dual Operational Amplifier, LM358P, Texas Instruments

The LM358P device is a next-generation version of the industry-standard LM358 operational amplifier (op amp), which includes two high-voltage (36 V) op amps. This device provides outstanding value for cost-sensitive applications, with features including low offset (300 µV, typical), a common-mode input range to ground, and high differential input voltage capability. The LM358P op amp simplifies circuit design with enhanced features such as unity-gain stability, a lower offset voltage with a maximum of 3 mV (2 mV maximum for the LM358P variant), and a lower quiescent current of 300 µA per amplifier (typical). High ESD tolerance (2 kV, HBM) and integrated EMI and RF filters enable the LM358P to be used in rugged, environmentally challenging applications.

Features

• Common-mode input voltage range includes ground, enabling direct sensing near ground
• Internal RF and EMI filter

Applications

• Merchant network and server power supply units
• Multi-function printers
• Power supplies and mobile chargers
• Desktop PC and motherboard
• Indoor and outdoor air conditioners
• Washers, dryers, and refrigerators
• AC inverters, string inverters, central inverters, and voltage frequency drives
• Uninterruptible power supplies
• Electronic point-of-sale systems
