LM224N | Texas Instruments

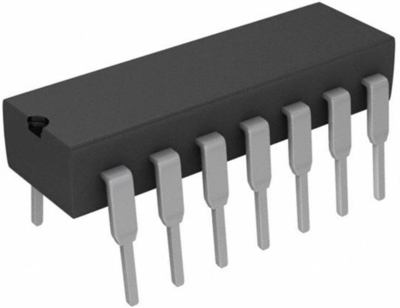

Quad general-purpose operational amplifier, PDIP-14, LM224N
Order No.: 41S1572
EAN: 4099879091888
MPN:
LM224N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2666 € *
Next delivery: 83 pcs. on 2026-02-13
Available in 5 Days: 400 pcs. - if ordered today
Operational amplifier, LM224N, TI
The LM224N device consists of four independent, high-gain, frequency-compensated, operational amplifier, that is designed specifically to operate from a single supply or split supply over a wide range of voltages.
Features
- Low quiescent current
- Common-mode input voltage
- Differential input voltage
- Open-loop differential voltage amplification
Applications
- Multi-function printer
- Power supply and mobile charger
- Motor control: AC induction, brushed DC
- Desktop PC and motherboard
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 4 | |
| Version | general purpose operational amplifier | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Country of origin | MX |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
