INA2126UA | Texas Instruments

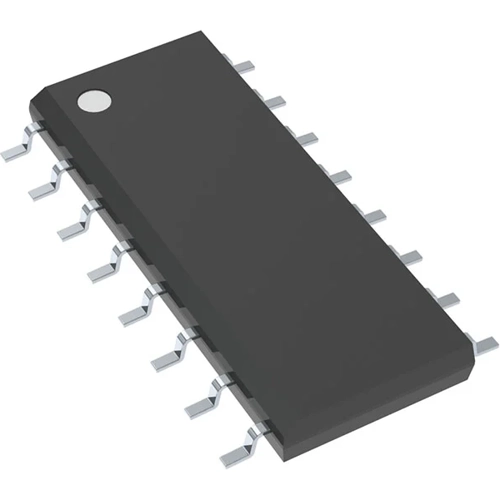

Dual instrument amplifier, SOIC-16, INA2126UA
Order No.: 70S1116
MPN:
INA2126UA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.4625 € *
Available in 5 Days: 185 pcs. - if ordered today
Instrumentation Amplifier, INA2126UA, Texas Instruments
The INA2126UA is a precision instrumentation amplifier for accurate, low-noise, differential-signal acquisition. The two-op-amp design provides excellent performance with low quiescent current (175μA/channel). This feature combined with a wide operating voltage range of ±1.35V to ±18V make the INA2126UA a great choice for portable instrumentation and data acquisition system. Gain can be set from 5V/V to 10000V/V with a single external resistor. Precision input circuitry provides low offset voltage (250μV, maximum), low offset voltage drift (3μV/°C, maximum), and excellent common-mode rejection.
Applications
- Level transmitter
- Flow transmitter
- Multiparameter patient monitor
- Mixed module
- AC charging (pile) station
- Infusion pump
- Electrocardiogram (ECG)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-16 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| Version | instrument amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
